Structural Breakdown And Zoning Of Airbus (A321,A320,A319,A318)

In this topic, the fuselage, vertical and horizontal stabilizers, and wings

station numbers are shown.

FUSELAGE

The station (STA) number is the distance in millimeters of the

cross-section from a reference point. The reference (X=0) for all

structural measurements in the X-axis is located 2.54 m (100 in)

forward of the aircraft.

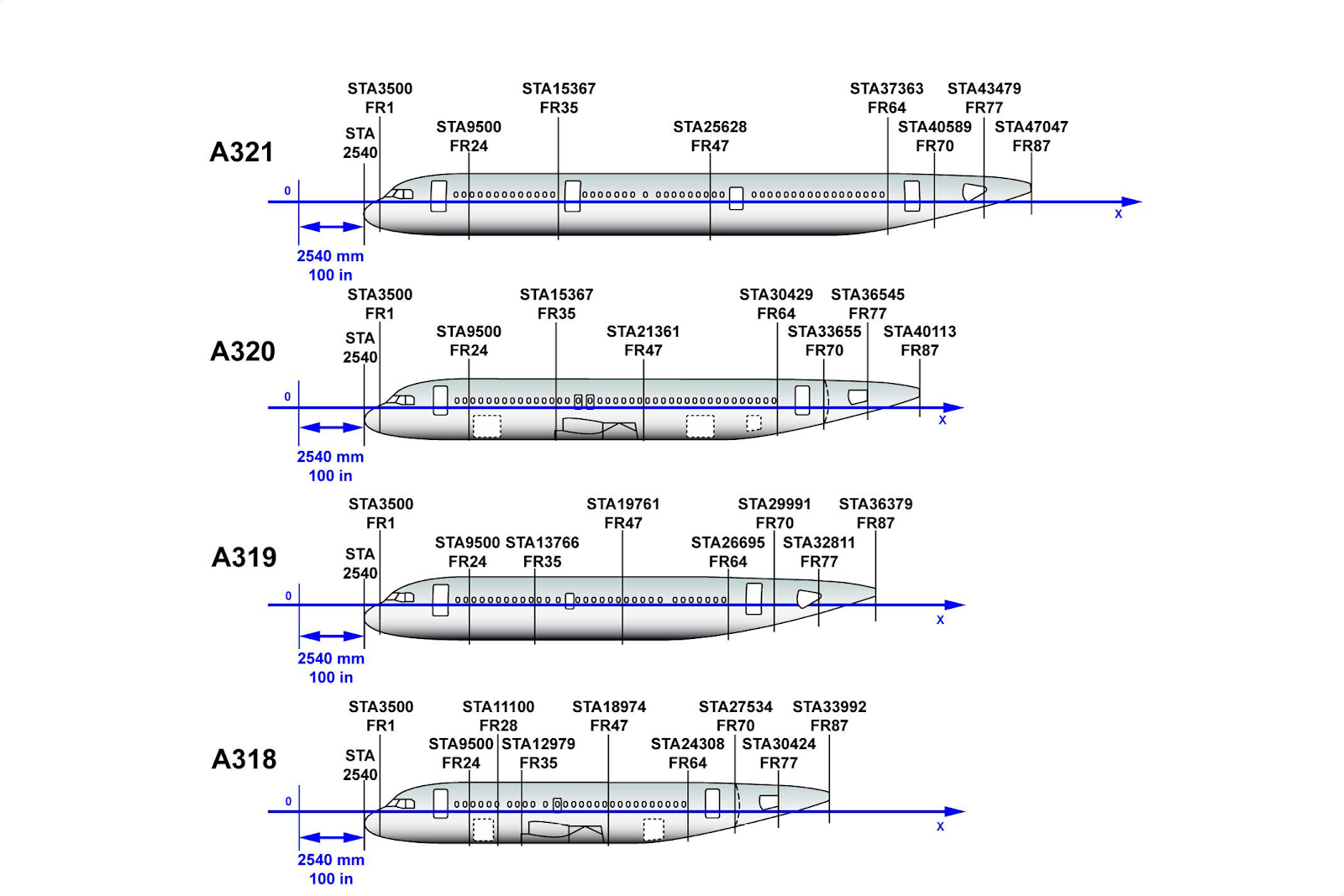

                          STRUCTURAL BREAKDOWN AND ZONING - FUSELAGE

VERTICAL STABILIZER

For the vertical stabilizer the reference station is Z=0 at the vertical

Z-axis. Due to the fin tip extension, the A318 station numbers have

changed. The new rib 12N is on the STA5970.

                 STRUCTURAL BREAKDOWN AND ZONING - VERTICAL STABILIZER

HORIZONTAL STABILIZER

For the horizontal stabilizer the reference station is Y=0 at the

horizontal Y-axis.

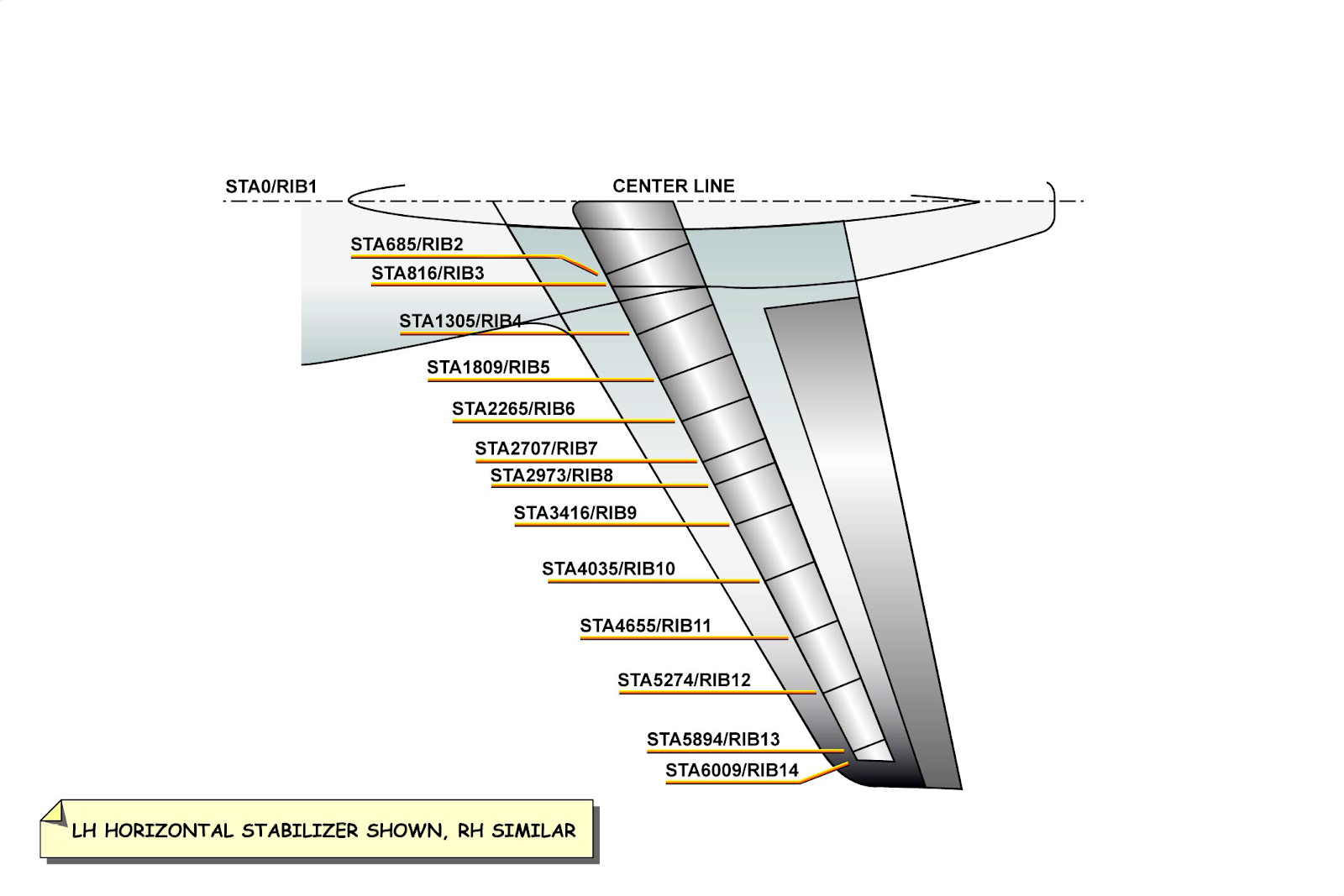

        STRUCTURAL BREAKDOWN AND ZONING - HORIZONTAL STABILIZER

WING

For wings, the reference station is the wing reference axis that is

located at 1868 millimeters (73.54 in) from the aircraft X-axis.

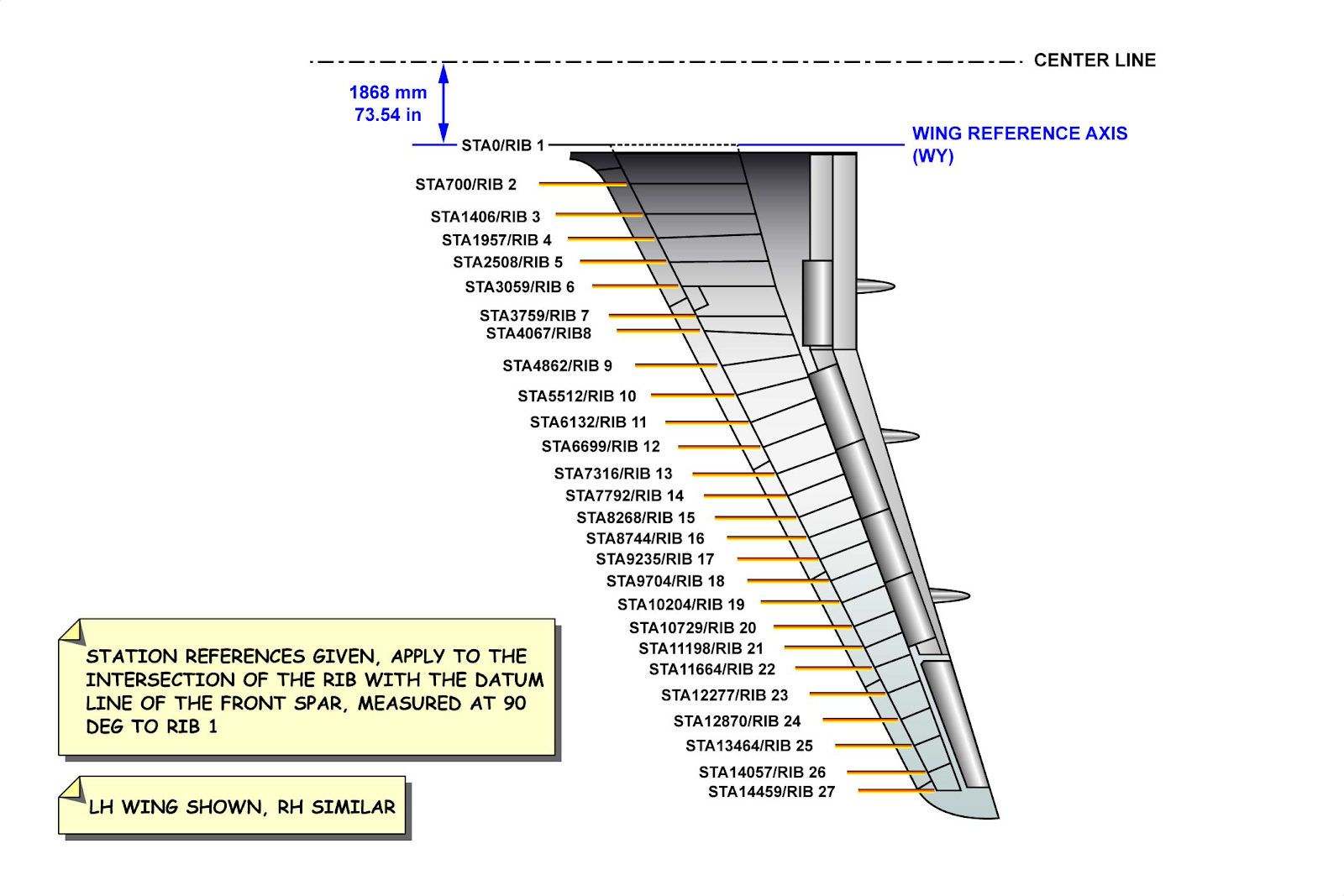

                             STRUCTURAL BREAKDOWN AND ZONING - WING
